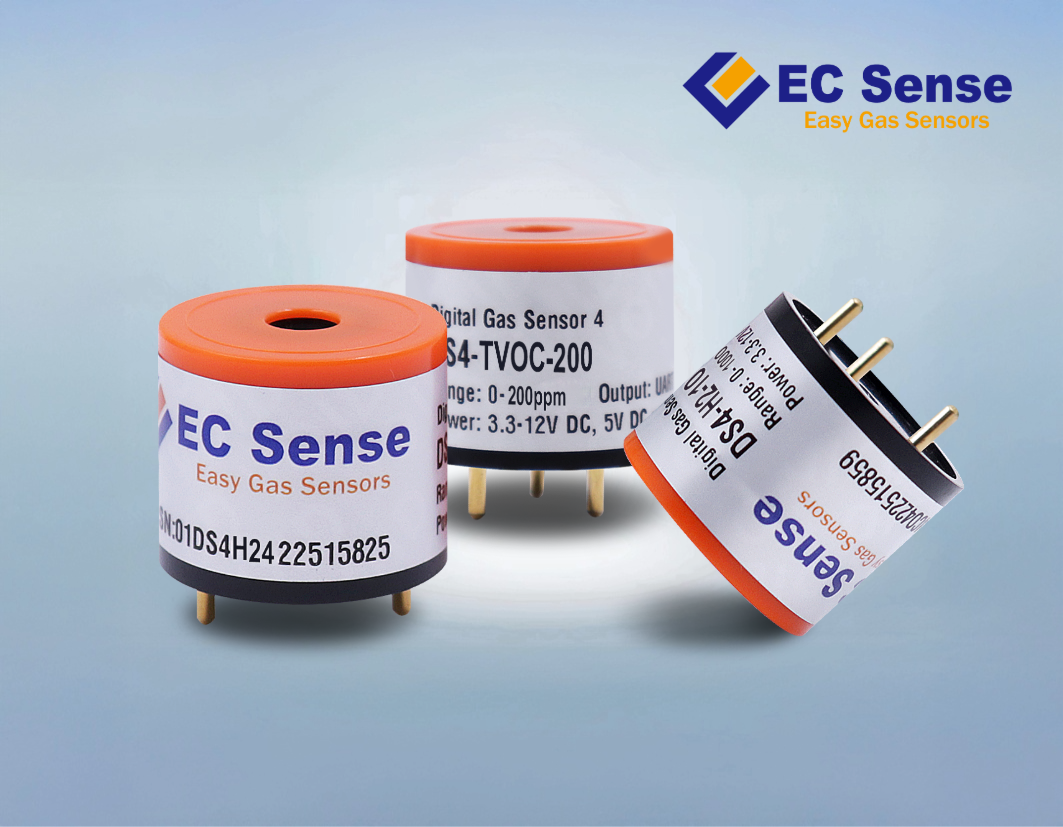

At Sensor+Test 2025, we are excited to introduce the DS4 Digital Gas Sensor, a groundbreaking advancement in gas detection technology. Utilizing cutting-edge printed solid polymer electrochemical sensing with a three-electrode arrangement, the DS4 delivers precise, reliable measurements for a wide range of applications. Its powerful microprocessor, high-precision ADC and intelligent algorithm enable optimal data acquisition and processing.
Comprehensive Testing & Calibration Solutions
Single Digital Gas Sensor Evaluation Kit: Facilitates individual sensor testing with UART to USB data transmission.
Bulk Evaluation Kit: Supports batch testing and calibration of over 25 sensors via RS485 to USB transmission, allowing large-scale sensor evaluation.
4S Flow Cap: Enables compatibility testing and calibration for individual or multiple sensors through diffusion testing.
Key Features & Advantages
The DS4 Digital Gas Sensor is engineered with cutting-edge features in a standard sized housing to ensure high performance and seamless integration into various systems.
- Low Power Consumption, Sleep Mode & Wide Power Supply Range – Operates efficiently within a 3.3V to 12V DC range (recommended 5V). Users can customize sleep and wake-up modes. nA power consumption, therefore, suitable for low-power battery or IoT applications.
- Reliable Performance in Extreme Conditions – Functions across a wide temperature range (-40℃ to +55℃) without temperature compensation.
- Exceptional Long-Term Stability & Durability:
- Long-term zero-point stability ensures accuracy over time.
- Fast response time provides real-time detection of gas concentration changes.
- Superior linearity guarantees precise measurements.
- Anti-poisoning design enhances sensor lifespan.
- Leak-Free Electrolyte Design – Unlike traditional electrochemical sensors, the DS4 features a solid electrolyte, eliminating the risk of liquid leakage due to high humidity or material aging.
- No Warm-Up Required – immediate gas detection upon power-up
- Easy Service & Self-Recognition – Plug-and-play and hot-swappable design. Outputs identity information such as gas type and detection range, providing flexible usage. Precise factory pre-calibrated, supports secondary development calibration & factory reset.
How It Works
The DS4 operates at a fixed potential, where the target gas diffuses through a controlled barrier into the sensor cell, triggering an electrochemical reaction at the working electrode. Simultaneous oxidation and reduction reactions generate a current that is directly proportional to the gas concentration. A reference electrode, maintained by a potentiostat, ensures consistent operation, making the DS4 an accurate and stable gas sensing solution.
Gases We Offer
The DS4 is available for a wide variety of gases:
| Formula | Gas |
|---|---|
| AsH3 | Arsine |
| CH4S | Methyl Mercaptan |
| Cl2 | Chlorine |
| CO | Carbon Monoxide |
| ETO | Ethylene Oxide |
| H2 | Hydrogen |
| H2S | Hydrogen Sulfide |
| HCHO | Formaldehyde |
| NH3 | Ammonia |
| NO2 | Nitrogen Dioxide |
| O2 | Oxygen |
| O3 | Ozone |
| PH3 | Phosphine |
| SMELL | Oder |
| SO2 | Sulfur Dioxide |
| TVOC | Volatile Organic Compounds |
Revolutionizing Gas Sensing for Industrial Applications
The DS4 Digital Gas Sensor is not just a sensor—it is a complete, intelligent gas detection solution. Its compact design, smart data processing, and robust performance make it ideal for integration into IoT networks, environmental monitoring, leakage detection, industrial safety systems, and beyond.
Experience the future of gas sensing with the DS4 Digital Gas Sensor at Sensor+Test 2025.
Visit our booth #1-344 to see live demonstrations and explore how the DS4 can elevate your gas sensing applications!
