What is the CO Gas Sensor?

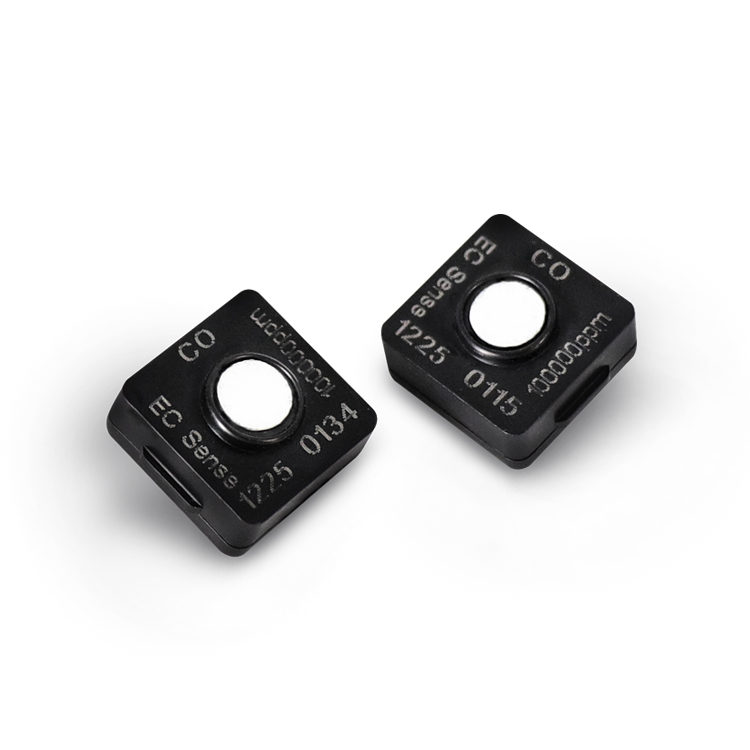

The EC Sense Carbon Monoxide ES1 Gas Sensor is a solid polymer electrochemical gas sensor featuring long lifetime and robustness. Moreover, it does not consume any power. In addition to that it has a small footprint. The CO Gas Sensor responds to Carbon Monoxide gases which are necessary to detect in many different applications. In combination with the EC Sense Smart Digital Boards, it allows easy integration without the tedious work of sensor calibration.
What is the Technology Principle?
Solid polymer electrochemical technology is a revolutionary innovation in the field of electrochemical detection. In essence this technology is based on the principle of electrochemical catalytic reaction. As a general rule the sensors respond to the target gases and deliver a very small current signal that is usually proportional to the gas concentration. Usually, electrochemical sensors are using either a liquid or a gel electrolyte which leads to a couple of challenges during the operation of the sensor. The EC Sense solid polymer electrochemical sensors overcome these obstacles.
How does the Technology work?
EC Sense’s solid polymer sensors feature a composition of three electrodes in contact with the electrolyte. A typical electrode consists of a large surface area of precious metal and other materials. The electrode, electrolyte and the surrounding air are in contact while the gas diffuses through the back of the porous membrane into the working electrode of the sensor. At this electrode, the gas is oxidized or reduced. This electrochemical reaction causes a current to flow through the external circuit.
What makes the EC Sense ES1 Gas Sensors so special?
While electrochemistry is well known in the world of gas detection, solid polymer electrochemical sensors offer cost effective production in large quantities. Furthermore, the automatic production process delivers stable and reliable quality. Above all the overall dimensions of the EC Sense sensors are very small allowing a smart integration into the application.
- Detects with high selectivity a wide variety of gases
- Long lifetime > 5 years
- Fast response time and stable zero return time
- Linear output
- No leakage
- No power consumption
- Small size
- Wide operation temperature range of -40° to +55°C
- RoHS approved environmental design
- Measurement Range: 0 – 10% vol.
- Resolution: 0.001% vol.
- Maximum Overload: 10% vol.
- Sensitivity: 5 ± 3 nA / ppm
- Response Time: T50 < 10 sec. / T90 < 30 sec.
- Weight: < 0.7g
- Dimensions (sensor): 11.5mm x 11.5mm x 4.5mm (without pins)
- 1 year. See Terms and Conditions.
