What is Biogas Detection with Electrochemical Gas Sensors?

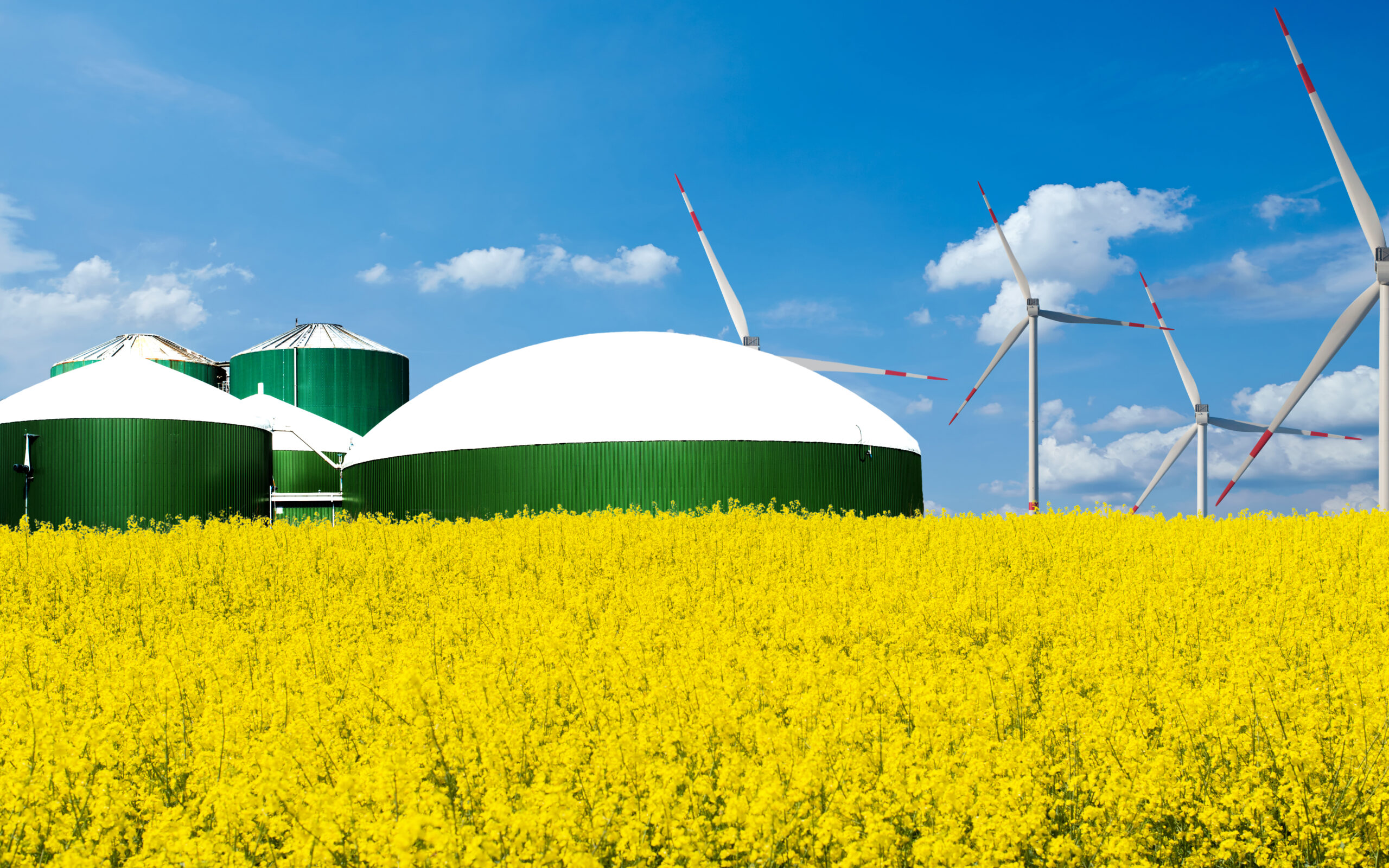

Biogas, a renewable energy source, is produced through the anaerobic digestion of organic matter. It typically consists of methane (CH₄), carbon dioxide (CO₂), trace gases such as hydrogen sulfide (H₂S), and water vapor. Accurate monitoring of biogas composition is essential for ensuring efficient energy recovery, operational safety, and environmental compliance. Solid polymer electrochemical gas sensors (SPEGS) are highly effective in biogas monitoring due to their sensitivity, selectivity, and robust performance in challenging environments.
What are typical Applications for Biogas Monitoring?
- Process Optimization:
- Excessive H₂S levels can damage equipment and reduce the efficiency of biogas upgrading systems.
- Safety Assurance:
- H₂S is toxic and corrosive, necessitating accurate detection to protect personnel and infrastructure.
- Environmental Compliance:
- Monitoring ensures adherence to emission regulations, reducing the environmental impact of biogas production.
- Leak Detection and Safety Monitoring:
- Portable SPEGS can be deployed to detect leaks, reducing fire and explosion hazards.
Advantages of Solid Polymer Electrochemical Gas Sensors for Biogas Applications
- Long Lifetime
- Solid polymer electrochemical sensors are designed to provide consistent and reliable performance over extended periods, reducing maintenance and replacement costs.
- High Selectivity and Sensitivity:
- SPEGS are highly selective, enabling accurate detection of specific gases such as H₂S, NH3, O2 and CO even in mixed gas environments.
- Robustness in Harsh Conditions:
- These sensors are resistant to high humidity and temperature variations commonly found in biogas production sites.
- Compact and Low-Power Design:
- SPEGS are lightweight and energy-efficient, ideal for integration into portable and remote monitoring systems.
- Fast Response Time:
- The rapid response of SPEGS allows real-time monitoring of gas concentration changes, enabling timely interventions.
Which Gases need to be monitored in Biogas Applications?
- Hydrogen Sulfide (H₂S)
- Why measure?
- H₂S is a toxic and corrosive gas present in trace amounts (typically 0.1–1%).
- It can damage equipment like engines, pipelines, and gas upgrading systems if not properly removed.
- Measurement Goal:
- Prevent corrosion and ensure compliance with occupational safety limits.
- Why measure?
- Oxygen (O₂)
- Why measure?
- Oxygen can indicate air ingress into the system, which could lead to process inefficiencies and safety risks such as explosion hazards.
- Anaerobic digestion requires oxygen-free conditions to function effectively.
- Measurement Goal:
- Detect leaks or malfunctions in the system to maintain proper anaerobic conditions.
- Why measure?
- Ammonia (NH₃)
- Why measure?
- Ammonia can form as a byproduct of protein degradation in feedstock.
- High ammonia levels can inhibit microbial activity, reducing methane production.
- Measurement Goal:
- Monitor ammonia levels to protect the digestion process and maintain biogas quality.
- Why measure?
- Trace Gases (e.g., Carbon Monoxide – CO)
- Why measure?
- Trace gases like carbon monoxide may be present in certain feedstocks or post-combustion processes.
- While not typically a concern in raw biogas, trace gases may be monitored in downstream applications.
- Measurement Goal:
- Assess any impurities that could affect the end-use of biogas.
- Why measure?
Summary of Key Gases and Their Importance:
| Gas | Primary Role in Biogas Monitoring | Typical Range | Importance |
|---|---|---|---|
| Hydrogen Sulfide (H₂S) | Corrosive impurity | 0.1–1% (trace) | Safety and equipment protection |
| Oxygen (O₂) | Safety and process monitoring | <1% (ideally 0%) | Leak detection and anaerobic control |
| Ammonia (NH₃) | Process inhibitor monitoring | Trace levels | Microbial activity management |
| Carbon Monoxide (CO) | Process monitoring | Trace levels | Quality control |
What are the Advantages of EC Sense Biogas Gas Sensor Products?
- General Features:
- Lower detectable limit of 1 ppb / 1 µg/m³
- Fast response time
- Gas Sensor Features:
- Small size
- Long lifetime > 3 years
- No warm-up time required
- No zero line drift
- Gas Sensor Module Features:
- Detects gas, temperature and humidity
- Digital signal UART (TTL 3.3 V) or I2C output
- Low power consumption and sleep mode (suitable for battery and IoT applications)
- Wide temperature range of -40 °C to +55 °C
Which Solutions can EC Sense offer for Biogas Applications?
| Product Line: | Features: |
|---|---|
| ES1, ES4, EC4 – Gas Sensors | For portable and fixed gas detection solutions |
| DS4 – Digital Gas Sensor | Smart gas sensor with a digital output |
| TB420 – Analog Gas Sensor Module | With intrinsic safety certification and standard 4-20 mA output |
Which Technology makes EC Sense Sensors special?
The EC Sense solid polymer electrochemical technology is a revolutionary innovation in the field of electrochemical detection. This technology is based on the principle of electrochemical catalytic reaction, detecting the output signals of the electrochemical reactions of different gases and accurately measuring the gas concentration through the signal. The sensor is composed of three electrodes in contact with the electrolyte. A typical electrode consists of a large surface area of noble metal and other materials. The electrode, electrolyte and the surrounding air are in contact and the gas diffuses into the working electrode. Here the gas will be oxidized, this causes a current, which is proportional to the gas concentration.
Solid polymer electrochemical gas sensors are a valuable tool for monitoring and managing biogas production processes. Their precision, durability, and adaptability make them an excellent choice for enhancing efficiency, ensuring safety, and meeting regulatory requirements. With proper implementation, these sensors enable a more sustainable and economically viable approach to renewable energy generation.
